Product Details
Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: BV,CE,ISO
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: negotiation
Packaging Details: plastic
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 piece/pieces per month
Application: |
Construction |
Used: |
Pulling |
Color: |
Customized |
Rod Diameter: |
13mm |
Rod Length: |
200m |
Wheel Diameter: |
300m |
Density: |
55g/m |
Technology: |
Pultrusion |
Application: |
Construction |
Used: |
Pulling |
Color: |
Customized |
Rod Diameter: |
13mm |
Rod Length: |
200m |
Wheel Diameter: |
300m |
Density: |
55g/m |
Technology: |
Pultrusion |

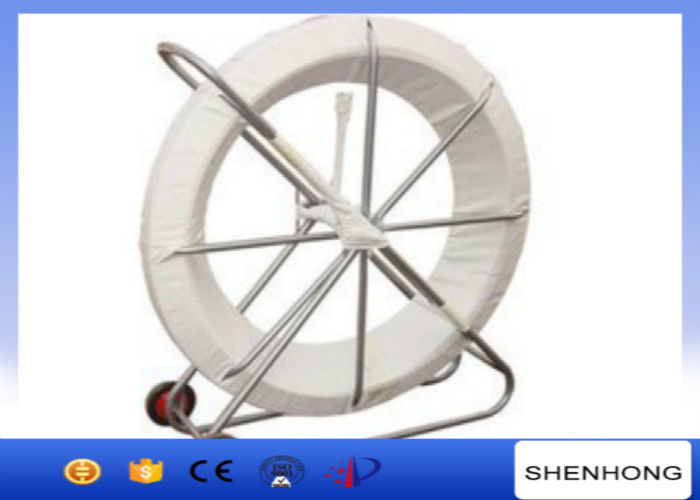

Dia 13mm 200m length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod
Application
It is used to install pulling ropes and winch ropes into ducts, ready for cable pulling operations
Features
It is lightweight and flexible
Specification
1. Rod diameter: 13mm
2. Rod length: 200m
3. Wheel diameter: 300m
4. Wall thickness of metal frame: 2.2mm
5. Color: blue,yellow,red white,ect.
Material
1. Rod inner: Extruded by fiberglass and high strength resin at high temperature
2. Rod outer: High density polyethylene coating
3. Iron frame: Steel with high-tempurature sprayed plastic or spray coating
4. Wheel: rubber
5. Brake: yes
6. Drawing head: ropper
Physical characters
1. Density: 55g/m
2. Working temperature: -40C to +80C
3. Breaking tension: 100kg
4. Breaking radius: 295mm
5. Technology: Pultrusion
Packaging
1. Inside: Plastic woven strip wind around the frame
2. Outside: Wooden pallet and wooden box
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
