Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: RL-50
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: get latest price
Packaging Details: carton
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pc/day
Product Name: |
Galvanized Rotation Mesh Cable Pulling Grip |
Application: |
Temporary Mesh Sock Joint |
Rated Load: |
35KN |
Material: |
Steel Wire Rope |
Diameter Range(mm): |
37-50 |
Mesh Length(mm）: |
950 |
Product Name: |
Galvanized Rotation Mesh Cable Pulling Grip |
Application: |
Temporary Mesh Sock Joint |
Rated Load: |
35KN |
Material: |
Steel Wire Rope |
Diameter Range(mm): |
37-50 |
Mesh Length(mm）: |
950 |

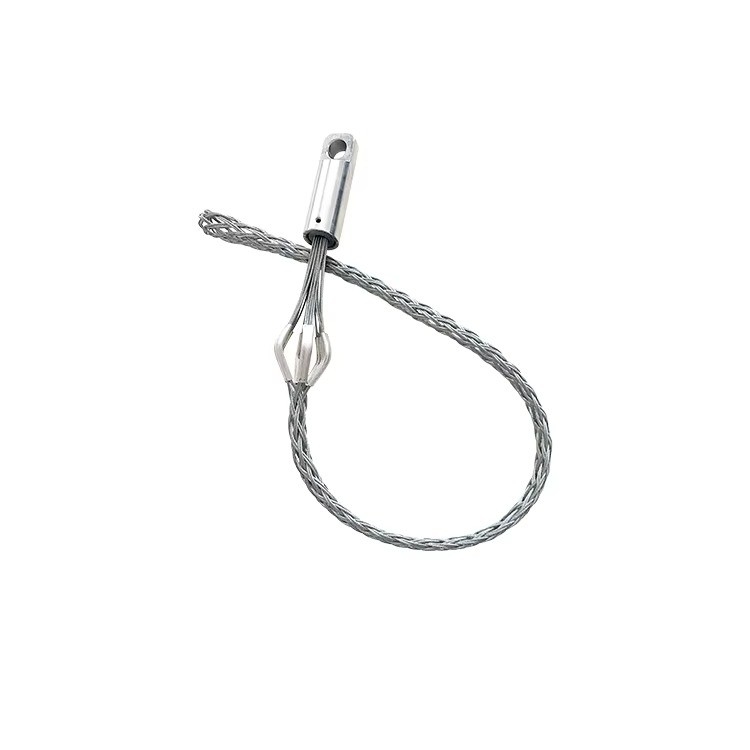

Galvanized Rotation Mesh Cable Pulling Grip 37-50mm with breaking load 35KN
Overview
|
Model |
Diameter range(mm) |
Mesh length(mm) |
Total length (mm) |
Breaking(KN) |
|
RL-18 |
15-18 |
650 |
750 |
10 |
|
RL-25 |
18-25 |
750 |
850 |
15 |
|
RL-37 |
25-37 |
900 |
1100 |
18 |
|
RL-50 |
37-50 |
950 |
1200 |
35 |
|
RL-63 |
50-63 |
1000 |
1300 |
45 |
|
RL-75 |
63-75 |
1150 |
1500 |
60 |
|
RL-90 |
75-90 |
1350 |
1700 |
70 |
|
RL-110 |
90-110 |
1600 |
2000 |
90 |
