Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Shenhong
Certification: ISO
Model Number: VIT
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US $80-600
Packaging Details: Cable Pulling Tools Hand Wire Rope Winch Wire Rope Tirfor 3.2 Ton is packed with exported standard wooden case.
Delivery Time: 7-10 work days
Supply Ability: 100 Piece/Pieces per Month
Sling Type: |
Wire Rope, Wire Rope |
Lift Speed: |
Manual |
Type: |
Hoist Winch |
Usage: |
Lifting |
Maximum Lifting: |
3.2T |
Max. Lifting Height:: |
20M |
Power Source: |
Lever, Hand |
Application: |
Construction Hoist |
Sling Type: |
Wire Rope, Wire Rope |
Lift Speed: |
Manual |
Type: |
Hoist Winch |
Usage: |
Lifting |
Maximum Lifting: |
3.2T |
Max. Lifting Height:: |
20M |
Power Source: |
Lever, Hand |
Application: |
Construction Hoist |
Capacity 3200kg Wire Rope 20 Meters Tirfor Winch Tirfor Cable Puller
Detail Introduction

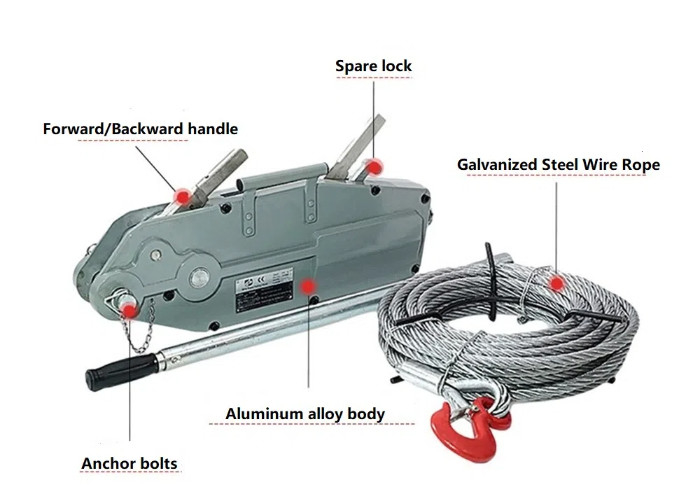

The manual wire rope puller is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.
The principle function of the wire puller is that the rope passes through mechanical jaws rather than being reeled on a drum of a puller or conventional winch.
The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.
A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.
This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.
The load is held securely at all times.
Portable hoist to lift and pull loads, for utilisation in numerous configurations with long cable lengths.
1. Low weight—quick installation
2. No limitation in terms of cable length
3. Manageable, light-weight, robust, powerful
4. Increase load capacity with deflection sheaves
5. Overload protection
6. Precise load placement within millimetres
Rope clamp system
Technical Data
| Model item | VIT-800 | VIT-1600 | VIT-3200 | VIT5400 |
| Rated forward hand power(N) | 341 | 438 | 438 | 745 |
| Rated capacity(KG) | 800 | 1600 | 3200 | 5400 |
| Rated forward travel(MM) | ≥52 | ≥55 | ≥28 | ≥30 |
| Rope diameter(MM) | 8.3 | 11 | 16 | 20 |
| Wire rope safty factor load capacity(TIMES) | 5 | 5 | 5 | 5 |
| Max travelling load(KG) | 1200 | 2400 | 4000 | 8000 |
| Net weight(KG) | 6.4 | 12 | 28 | 56 |
| Max outer size(MM) A | 426 | 545 | 660 | 930 |
| B | 238 | 284 | 325 | 480 |
| C | 64 | 97 | 116 | 152 |
| L1(CM) | 80 | 80 | 68 | |
| L2(CM) | 80 | 120 | 120 | 112 |
| Packing (L*W*H)(CM) | 43*6.4*24 | 54.5*9.7*29 | 66*12*35 | 110*110*73 |
