Product Details
Place of Origin: Jiangsu, China
Brand Name: shenhong
Certification: BV,CE,ISO
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: negotiation
Packaging Details: plastic
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 piece/pieces per Month
Application: |
Construction |
Rod Diameter: |
4mm |
Rod Length: |
150m |
Wheel Diameter: |
300mm |
Color: |
Customized |
Used: |
Pulling |
Breaking Tension: |
100kg |
Bending Radius: |
295m |
Application: |
Construction |
Rod Diameter: |
4mm |
Rod Length: |
150m |
Wheel Diameter: |
300mm |
Color: |
Customized |
Used: |
Pulling |
Breaking Tension: |
100kg |
Bending Radius: |
295m |

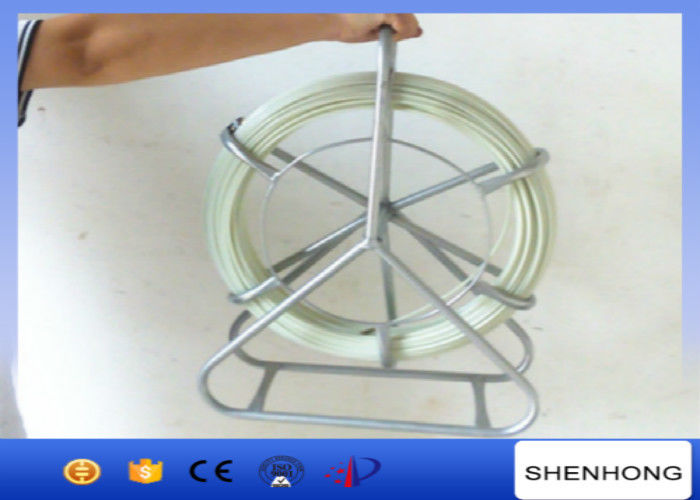

4mm diameter 150m length FRP fiberglass cable duct rod, fiberglass push pull
Application

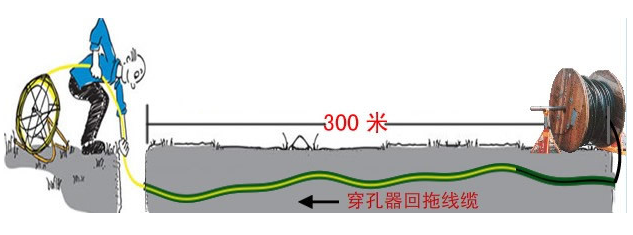

It is used to install pulling ropes and winch ropes into ducts, ready for cable pulling operations.
Features
lightweight and flexible
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Our Values
1. Take First-Class Quality as Target and First-class Service.
2. As Responsibility, To Succeed By Scientific Management.
3. Customer in Heart, Quality in Hand, Technology in the Lead.
Technical data of 4mm diameter 150m length FRP fiberglass cable duct rod, fiberglass push pull
| Specification | Rod diameter(mm) | 4,4.5,5,6,8,10,11,12,13,14,15,16 |
| Rod length(m) | 30-500 | |
| Frame spec.(mm) | 1300*450*1330,1200*420*1220,980*350*1000,680*240*700,ect. | |
| Wheel diameter(mm) | 300 | |
| Wall thickness of metal frame(mm) | 2.2 | |
| Color | blue,yellow,red white,ect. | |
| Material | Rod inner | Extruded by fiberglass and high strength resin at high temperature |
| Rod outer | High density polyethylene coating | |
| Iron frame | Steel with high-tempurature sprayed plastic or spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical characters | Density | 55g/m |
| Working temperature | -40C to +80C | |
| Breaking tension | 100kg | |
| Breaking radius | 295mm | |
| Technology | Pultrusion | |
| Packaging | Inside | Plastic woven strip wind around the frame |
| Outside | Wooden pallet and wooden box |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
