Product Details
Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: CE,BV,ISO
Model Number: SIYZ
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Coil Diameter: |
2000-3800mm |
Coil Width: |
1700-1950mm |
Max Weight: |
10-15T |
Max Working Torque: |
3300-4500N.m |
Max Speed: |
45rpm |
Axle Diameter: |
94-119mm |
Weight: |
597-789kg |
Length Of Hydraulic Tube: |
15-20m |
Coil Diameter: |
2000-3800mm |
Coil Width: |
1700-1950mm |
Max Weight: |
10-15T |
Max Working Torque: |
3300-4500N.m |
Max Speed: |
45rpm |
Axle Diameter: |
94-119mm |
Weight: |
597-789kg |
Length Of Hydraulic Tube: |
15-20m |

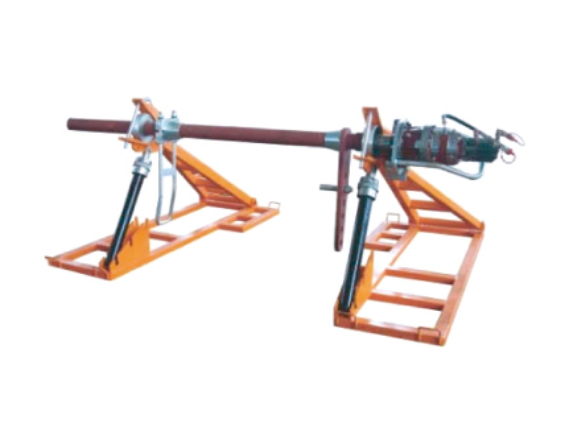

10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed
Application
It is applicable to the placement of the cable tray, with hydraulic lifting.
Features
It is applicable to be as the support of large cable reel in laying cables in the city.
It is easy to move with the trundles in the bottom.
It can be equipped with a braking device, using the foot brake.
Notes: Connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling.
Technical data of 10-15T Hydraulic conductor reel drum stand 3300-4500N.m brake force 45rpm speed
| Model | SIYZ10 | SIYZ15 | |
| Applicable reel | Diameter of coil(mm) | Φ2000-3000 | Φ2000-3800 |
| Width of coil(mm) | ≤1700 | ≤1950 | |
| Diameter of axle hole(mm) | Φ125-130 | ||
| Maximum weight(kg) | 10000 | 15000 | |
| Max working torque(N.m) | 3300 | 4500 | |
| Max speed(rpm) | 45 | 45 | |
| Axle diameter(mm) | Φ94 | Φ119 | |
| Weight(kg) | 597 | 789 | |
| Length of hydraulic tube(m) | 15 | 20 | |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
