Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: YYZJ-50
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: USD3000-USD7000/set
Packaging Details: export standard package
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/Month
Rated Load: |
50kN To 150kN |
Axis Diameter: |
70-120mm |
Centre Height: |
1250mm |
Warranty: |
1 Year |
Usage: |
Stringing Cable |
Product: |
Grounding Cable Reel Stand |
Rated Load: |
50kN To 150kN |
Axis Diameter: |
70-120mm |
Centre Height: |
1250mm |
Warranty: |
1 Year |
Usage: |
Stringing Cable |
Product: |
Grounding Cable Reel Stand |

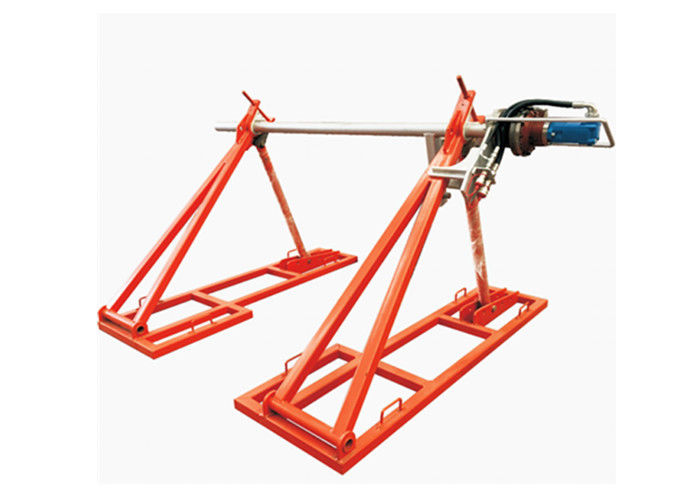

Heavy Load Cable Drum Jack Hydraulic Stringing Equipment Grounding Cable Reel Stand
Application:
During the construction of the power line, the supporting cable reel stand is used for stringing construction. Normally matching with hydraulic tensioner machine through quick joint. Mainly applied in the supporting of cable drum, it can be applied in different kinds of reel specification, making it easy to move, simple operation, secure and durable.
Features:
1. It is applicable to be as the support of large cable reel in laying cables.
2. It can be equipped with a braking device, using the foot brake.
3. Made of welded steel with protective coating, the frame is completely detachable to reduce dimensions during transport.
Data sheet
| Item | Model | YYZJ-50 | YYZJ-60 | YYZJ-80 | YYZJ-150 |
| Basic parameters | Shaft brack centre height | 1250mm | 1250mm | 1250mm | 1500mm |
| Wire tray axial length | 2050mm | 2350mm | 2350mm | 2500mm | |
| Axis diameter | 70mm | 80~100mm | 80~100mm | 100~120mm | |
| Rated load | 50kN | 60kN | 80kN | 150kN | |
| Tension of conductor axle bracket | 0~3kN | 0~3kN | 0~3kN | 0~3kN | |
| Hydraulic oil tube length | 15000mm | 15000mm | 15000mm | 20000mm |
