Product Details
Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: BV,CE,ISO
Model Number: VIT
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: wooden case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Capacity: |
800-5400kg |
Rope Diameter: |
8.3-20mm |
Max Travelling Load: |
1200-8000kg |
Net Weight: |
6.4-56kg |
Application: |
Construction |
Package: |
Wooden Case |
Capacity: |
800-5400kg |
Rope Diameter: |
8.3-20mm |
Max Travelling Load: |
1200-8000kg |
Net Weight: |
6.4-56kg |
Application: |
Construction |
Package: |
Wooden Case |

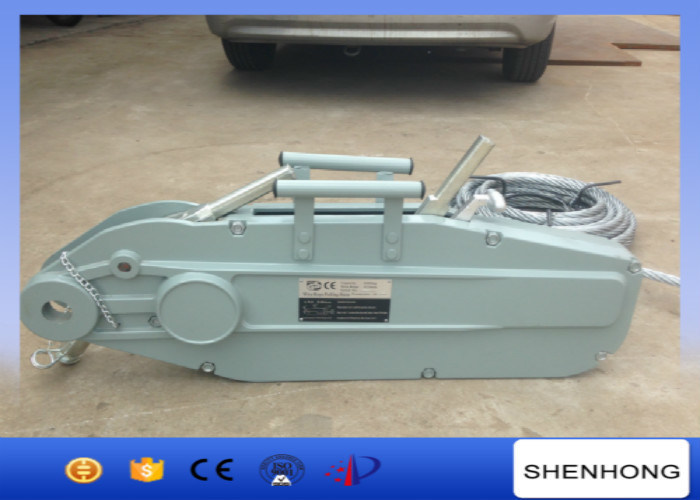

Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch
Application
It is used to tighten steel stranded wire and aluminous stranded wire operations in line construction, the free stretch distance is 1m.
Features
1. Equipped with two safty devices, and this guarantees safe operations.
2. Can be used at any working temperature degrees
3. Equipped with a saftey hook, preventing wire rope from coming off while operation
Technical data of Tirfor Manual Wire Rope Pulling Hoist Wire Rope Winch cable pulling tools
| Model | VIT-800 | VIT-1600 | VIT-3200 | VIT-5400 |
| Rated forward hand power(N) | 341 | 438 | 438 | 745 |
| Rated capacity(kg) | 800 | 1600 | 3200 | 5400 |
| Rated forward travel(mm) | ≥52 | ≥55 | ≥28 | ≥30 |
| Rope diameter(mm) | 8.3 | 11 | 16 | 20 |
| Wire rope safty factor load capacity(times) | 5 | 5 | 5 | 5 |
| Max travelling load(kg) | 1200 | 2400 | 4000 | 8000 |
| Net weight(kg) | 6.4 | 12 | 28 | 56 |
| Max outer size(mm)A | 426 | 545 | 660 | 930 |
| B | 238 | 284 | 325 | 480 |
| C | 64 | 97 | 116 | 152 |
| L1(cm) | 80 | 80 | 68 | |
| L2(cm) | 80 | 120 | 120 | 112 |
| Packing(L*W*H)(cm) | 43*6.4*24 | 54.5*9.7*29 | 66*12*35 | 110*110*73 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
