Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SLU-5
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD10-20
Packaging Details: carton
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50pc/day
Type: |
Fixed Joints |
Application: |
To Connect The Pilot Wire Rope, And Pulling Rope To Pass Over The Conductor Pulleys, Bull Wheels Of Hydraulic Puller Or Puller-tensioner |
Rated Load: |
50KN |
Weight: |
0.6kg |
Selling Point: |
High Strength |
Material: |
Alloy Steel |
Type: |
Fixed Joints |
Application: |
To Connect The Pilot Wire Rope, And Pulling Rope To Pass Over The Conductor Pulleys, Bull Wheels Of Hydraulic Puller Or Puller-tensioner |
Rated Load: |
50KN |
Weight: |
0.6kg |
Selling Point: |
High Strength |
Material: |
Alloy Steel |

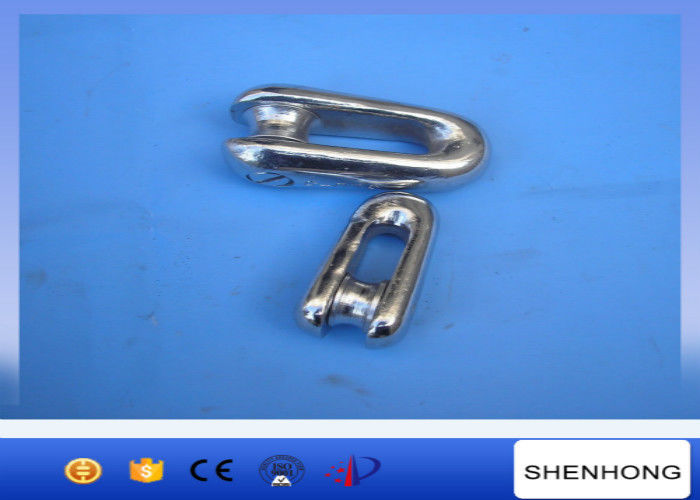

SLU-5 Cable Pulling Tools Fixed Joints U Shape Pilot Wire Connectors
Data Sheet
|
Item No.
|
Model
|
Dimension of Connector (mm)
|
Rated Load (KN)
|
Weight (kg)
|
||||
|
A
|
B
|
C
|
D
|
E
|
||||
|
17111
|
SLU-1
|
36
|
68
|
18
|
14
|
24
|
10
|
0.2
|
|
17112
|
SLU-3
|
37
|
76
|
20
|
17
|
28
|
30
|
0.2
|
|
17113
|
SLU-5
|
50
|
98
|
23
|
19
|
43
|
50
|
0.6
|
|
17114
|
SLU-8
|
58
|
120
|
28
|
25
|
52
|
80
|
1.1
|
|
17115
|
SLU-10
|
59
|
126
|
30
|
26
|
54
|
100
|
1.2
|
|
17116
|
SLU-13
|
61
|
134
|
32
|
27
|
56
|
130
|
1.2
|
|
17117
|
SLU-15
|
63
|
138
|
37
|
28
|
58
|
150
|
1.4
|
|
17118
|
SLU-25
|
80
|
178
|
44
|
35
|
72
|
250
|
3.0
|
|
17118A
|
SLU-28
|
80
|
178
|
44
|
35
|
72
|
280
|
3.0
|
|
17119
|
SLU-32
|
85
|
186
|
42
|
38
|
80
|
320
|
3.9
|
