Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SJS-2
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Max. Center-Center Distance (mm): |
20 |
Max. Adjustable Distance (mm): |
1030 |
Weight: |
4kg |
Item: |
Ratchet Turnbuckle |
Warranty: |
1 Year |
Rated Load: |
20KN |
Max. Center-Center Distance (mm): |
20 |
Max. Adjustable Distance (mm): |
1030 |
Weight: |
4kg |
Item: |
Ratchet Turnbuckle |
Warranty: |
1 Year |
Rated Load: |
20KN |

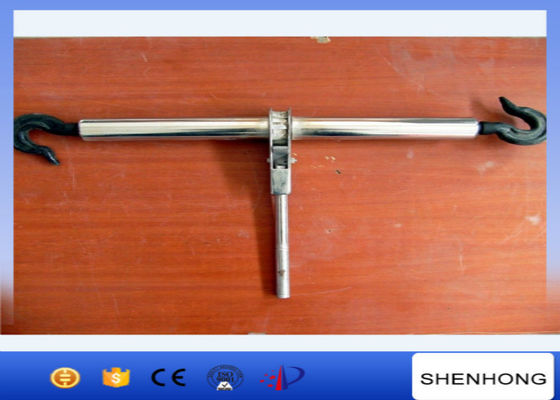

20KN Cable Pulling Tools SJS-2 Double Hook Ratchet Turnbuckle Conductor Adjusting Sag
Product Description
A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It normally consists of two threaded eyelets, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread. The tension can be adjusted by rotating the frame, which causes both eyelets to be screwed in or out simultaneously, without twisting the eyelets or attached cables.
Turnbuckle (Stub& End) are most commonly used in applications which require a great deal of tension; they can range in mass from about ten grams for thin cable used in a garden fence, to thousands of kilograms for structural elements in buildings and suspension bridges.
Double hook turnbuckle; T-Clamp;
1. High quality.
2. light weight;
3. wear well
4. Material quality:stainless steel
Double hook turnbuckle; T-Clamp;
1. High quality.
2. light weight;
3. wear well
Application
The ratchet turnbuckle is widely used in transmission line construction operation. The turnbuckle could be used for adjusting the sag of conductor.
Data Sheet
|
Model
|
Rated Load (KN)
|
Max. Center-Center Distance (mm)
|
Max. Adjustable Distance (mm)
|
Weight (kg)
|
|
|
14111
|
SJS-0.5
|
5
|
730
|
230
|
2.5
|
|
14112
|
SJS-1
|
10
|
840
|
280
|
3.5
|
|
14113
|
SJS-2
|
20
|
1030
|
330
|
4
|
|
14114
|
SJS-3
|
30
|
1350
|
460
|
6
|
|
14115
|
SJS-5
|
50
|
1440
|
500
|
8
|
|
14116
|
SJS-8
|
80
|
1660
|
580
|
8.5
|
|
14117
|
SJS-10
|
100
|
1740
|
600
|
10
|
