Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Sling Type: |
Wire Rope |
Usage: |
Tightening Wire |
Max Length(mm): |
1000 |
Wire Rope Dimater: |
5mm |
Load Capacity: |
4T(8000lbs) |
Lerverage: |
15:1 |
Sling Type: |
Wire Rope |
Usage: |
Tightening Wire |
Max Length(mm): |
1000 |
Wire Rope Dimater: |
5mm |
Load Capacity: |
4T(8000lbs) |
Lerverage: |
15:1 |

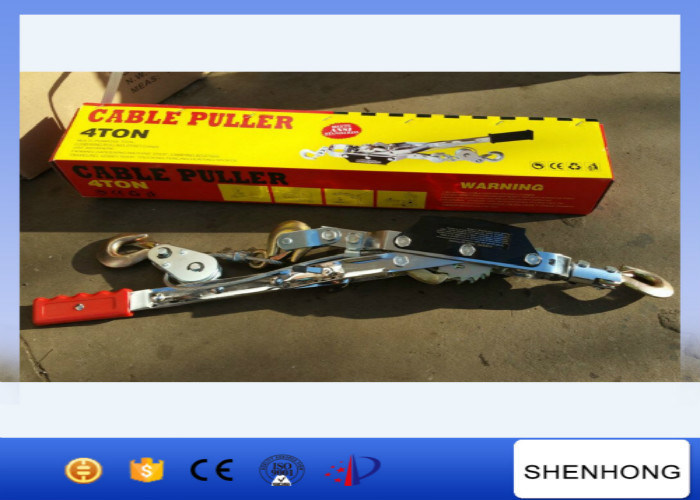

4T 8000lbs Cable Pulling Tools Electric Cable Hoist / Power Cable Puller
This product is mainly applying to the forward pull, such as the mooring of a ship,the centering of a tree,the forward moving of the equipment and the package of the goods,Especially applying to the limitation. Besides ,there are many advantages of this product. Firstly,it has light weight ,small volume and compact conformationk. Secondly,it can stand wear and teer as well as corrosion resistant,Thirdly,it's difficult to skid ,it doesn't damage the surface of the goods,it suits the frequently loading .And lastly,because of adopting the reasonable gang system and with its small arbor force, it can greatly reduce the damage of the steel wine , increase the function and it is convenient to operate.
1. Suitable for the automobile loading boiler ,steel ,wood ,bamboo,mineral wool textile.
2. It can greatly reduce the damage of the steel wine , increase the function
since adopting the reasonable gang system.
3. It can stand wear and teer as well as corrosion resistant
4. It has light weight ,small volume and compact conformationk.
5. Convenient to operate with its small arbor force.
Technical Data
| Capacity | Cable Diameter(mm) | Leverage | Ratchet |
| 1T | 5 | 15:1 | Single |
| 1 1/2T | 4.2 | 15:1 | Single |
| 2T | 4.8 | 15:1 | Single |
| 2T | 5 | 15:1 | Double |
| 4T | 5 | 15:1 | Single |
