Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: CE,ISO
Model Number: JJM1Q
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Application: |
Pulling |
Material: |
Steel |
Rated Load: |
10KN |
Power: |
5.5HP |
Engine: |
HONDA Engine |
Weight: |
55kg |
Application: |
Pulling |
Material: |
Steel |
Rated Load: |
10KN |
Power: |
5.5HP |
Engine: |
HONDA Engine |
Weight: |
55kg |

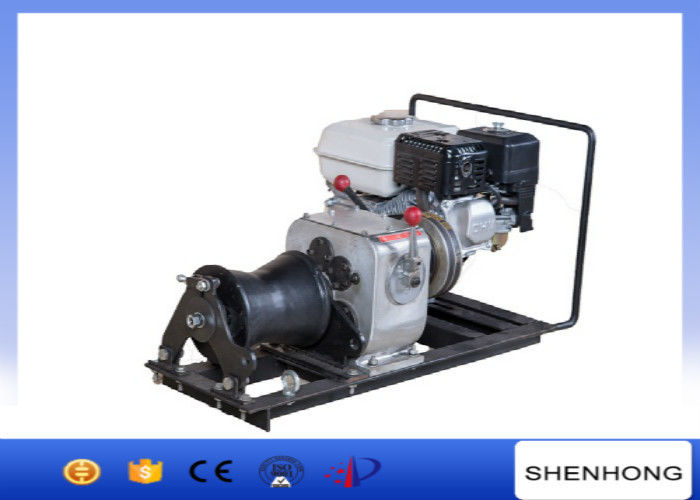

10KN Belt Driven Cable Powered Pulling Winch With HONDA Gasoline Engine
Application
1. It is used for tower erection,pole setting,stringing wire in electrical power line construction.
2. Winch can be modified as per requirement, such as changing curve capstan into straight even
3. cylindrical shape and coming with steel rope.
Technical data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1Q | HONDA gasoline engine | Slow | 10 | 0.8 | 50 |
| Fast | 15 | 0.6 | |||
| Reverse | 12 | NO Lifting |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
