Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SKDD-1
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Rated Load(KN): |
10 |
Weight(kg): |
1.5 |
Type: |
Single Cam Clamp |
Wire Size Range (mm²): |
25-50 |
Max. Opening (mm): |
14 |
Product Name: |
1 Ton Single Cam Transmission Line Earth Wire Grips For 25-50 Mm2 Earth Wire |
Rated Load(KN): |
10 |
Weight(kg): |
1.5 |
Type: |
Single Cam Clamp |
Wire Size Range (mm²): |
25-50 |
Max. Opening (mm): |
14 |
Product Name: |
1 Ton Single Cam Transmission Line Earth Wire Grips For 25-50 Mm2 Earth Wire |

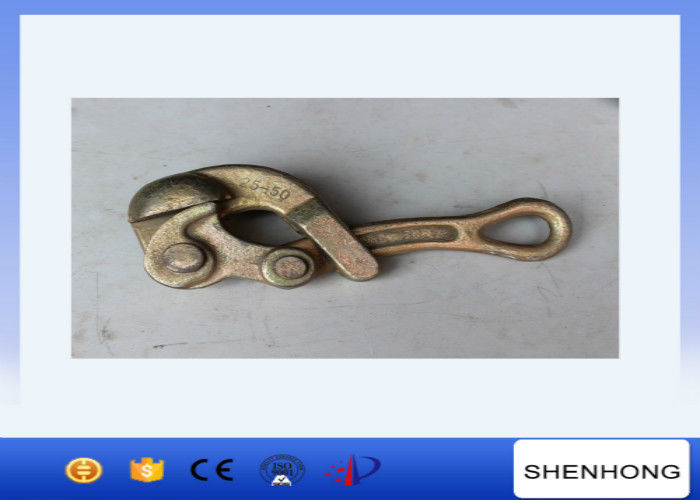

Transmission Line 25-50 MM2 Earth Wire Rope Clips 1 Ton Single Cam
Use and Characteristics:
Single Cam Cable Wire Grip is adapted to adjust cable and ground wire during cable tower.
Used for insulate conducting line of tighten or adjust arc to hang.
Adopt high intensity aluminum titanium alloy to forge forming, self-weight light.
The nipper orifice fraction is handled by special net line, whether winter or summer also can lock the cable
firmly and do not destroy the inner core.
Features
Capacity: 1T-2T
Small,easy to use.
Light and handy flexible.
Best Quality, safety,long life-span.
Technical specification below for your reference:
| Model | Suitable steel stranded wire(mm2) | Maximum opening(mm) | Rated load (KN) | Weight (kg) |
| SKDD-1 | 25-50 | 11 | 10 | 1.3 |
| SKDD-2 | 70-120 | 16 | 20 | 1.7 |
Wire grip, Single Cam Cable Grip, Haven Grips
