Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Rated Load(KN): |
20 |
Weight(kg): |
1.3 |
Cable: |
4-22 Mm |
Type: |
Wire Rope Grip Cable Grip |
Material: |
Alloy Steel |
Warranty: |
1 Year |
Rated Load(KN): |
20 |
Weight(kg): |
1.3 |
Cable: |
4-22 Mm |
Type: |
Wire Rope Grip Cable Grip |
Material: |
Alloy Steel |
Warranty: |
1 Year |

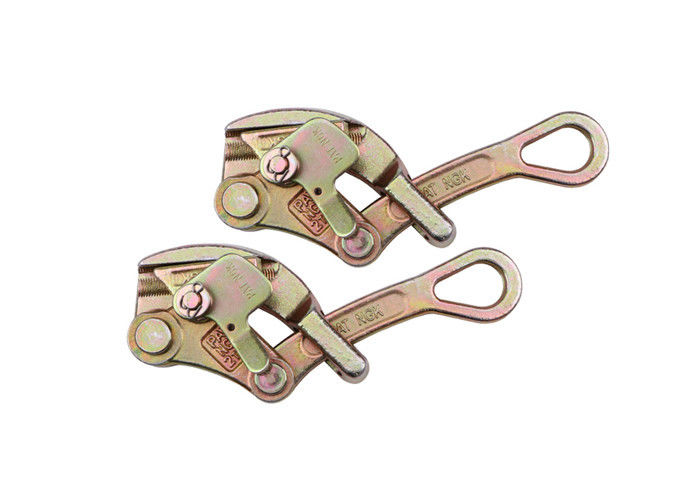

2 TON PAT NGK WIRE GRIP CABLE GRIP FOR CABLE OR ROPE 20KN 4-22mm
Made from forged alloy steel.
Clamp mouth with latch protection device, designed to prevent line slippage.
Special heat treatment, strong resistance to tension, will not easily slip or cause deformation to wire or rope.
Material: 4140 high strength forged alloy steel
Load range: 2.0 Ton
Appearance:zinc plating color
Cable grips for pulling and gripping copper cable, covered conductor, steel rod, copper cable, and messenger wire
capacity from 0.5T to 5T 2.Tensile strength 1.770N/square mm 3.CE and ISO9002
With delicate smooth clamp mouth, minimal harm to wires.
Using forging alloy steel galvanized available as request .
Clip claw sharp, clip power strong
Clamp mouth with latch insurance device, don’t jump line.
After special heat treatment ,strong resistance to tension.. meshing degree is high, not easy slippage deformation.
Material:4140 high strength forged alloy steel
Load range:0.5T-3T
Structure: Heat treatment temperature treatment (Quenching and tempering)
Appearance: zinc plating choice.
Data Sheet
| Model No | Safe Load ( Ton ) | Conductor dia recommended (mm) | N.W(KG) |
| S-0500 | 0.5 | 1- 10 mm | 0.25 |
| S-1000 | 1 | 2.5- 16 mm | 0.85 |
| S-2000 | 2 | 4- 22 mm | 1.2 |
| S-3000 | 3 | 16- 32 mm | 2.5 |
