Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SKL-40
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Rated Load(KN): |
40 |
Weight(kg): |
4.4 |
Application: |
Sag Adjusting And Tensioning On Overhead Line Construction. |
Material: |
Aluminum Alloy |
Max Open: |
32mm |
Conductor Diameter (mm): |
23-29 |
Rated Load(KN): |
40 |
Weight(kg): |
4.4 |
Application: |
Sag Adjusting And Tensioning On Overhead Line Construction. |
Material: |
Aluminum Alloy |
Max Open: |
32mm |
Conductor Diameter (mm): |
23-29 |

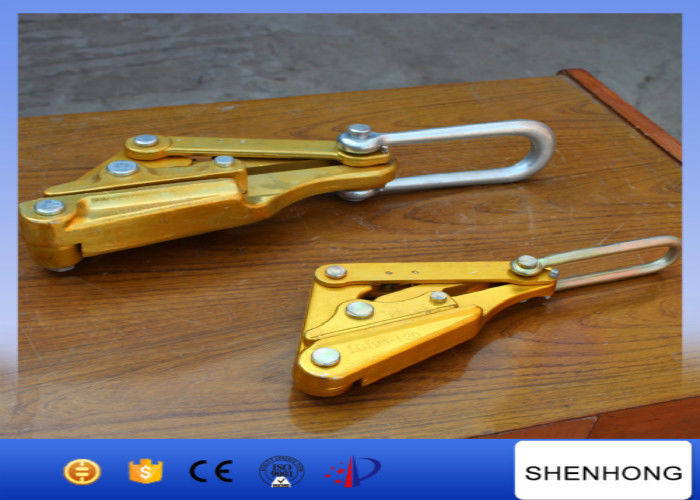

32MM Max Open Cable Pulling Clamp SKL-40 , HIT TOOL Wire Grip Clamp
Application
Used to pull conductors in power and communication line construction field, and to maintain temporary tension until it can be permanently terminated.
It is specially used for adjustment of sagging of conductors, to hold the conductors temporarily during the stringing operation.
Feature
Aluminum Alloy Automatic COME ALONG CLAMPS
| Item No. | Model | Rated Load (KN) | Conductor Diameter (mm) | Max. Opening (mm) | Weight (kg) |
| 13221 | SKL-7 | 7 | ACSR7-12 | 14 | 1.0 |
| 13222 | SKL-15 | 15 | ACSR13-16 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | ACSR17-23 | 24 | 3.0 |
| 13224 | SKL-40 | 40 | ACSR23-29 | 32 | 4.4 |
| 13225 | SKL-50 | 50 | ACSR30-35 | 36 | 6.6 |
| 13227 | SKL-60 | 70 | ACSR36-38 | 40 | 9.2 |
Shipment
1. The wire grips will be shipped in plywood case by air or by ship.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The wire grips will be packed in plywood case.
2. It also can be packed in wood case or steel frame case.
