Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SKL
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Rated Load(KN): |
7-80 |
Weight(kg): |
1.0-18 |
Product Name: |
Transmission Line Wire Grips For Adjustment Of Sagging Of Big Conductors |
Application: |
Sag Adjusting And Tensioning On Overhead Line Construction. |
Material: |
Aluminum Alloy |
Advantage: |
Light Weight |
Rated Load(KN): |
7-80 |
Weight(kg): |
1.0-18 |
Product Name: |
Transmission Line Wire Grips For Adjustment Of Sagging Of Big Conductors |
Application: |
Sag Adjusting And Tensioning On Overhead Line Construction. |
Material: |
Aluminum Alloy |
Advantage: |
Light Weight |

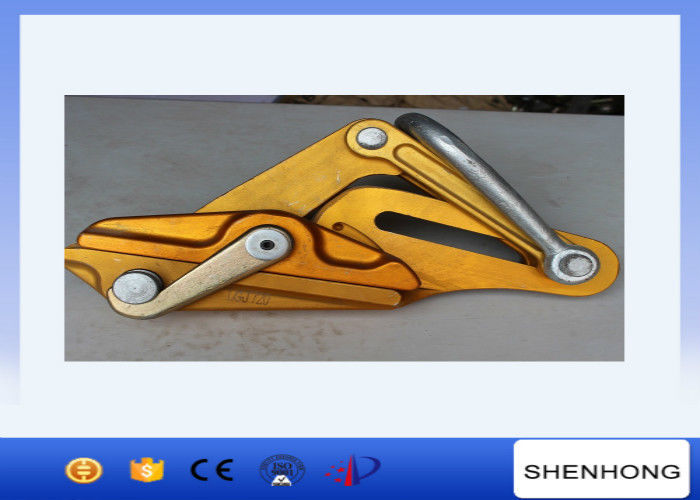

Transmission Line Wire Grip Clamp For Big Conductors Adjustment / Sagging
Wire Grips for big conductor is used for conductor diameter 38-45 mm. The wire grips is specially made in aluminum alloy, with light weight and high strength.
AUTOMATIC ALUMINUM ALLOY WIRE GRIPS FOR BIG CONDUCTOR
| Item No. | Model | Working Load (KN) | Conductor Range | Max. Opening (mm) | Weight (kg) |
| 13228 | SKL-70 | 70 | Φ38-40 mm | 42 | 14 |
| 13229 | SKL-80 | 80 | Φ41-43 mm | 45 | 18 |
| 13229A | SKL-80A | 80 | Φ44-46 mm | 48 | 18 |
It is specially used for adjustment of sagging of conductors, to hold the conductors temporarily during the stringing operation. The whole body and jaw is made of High strength Aluminum Alloy, light weight and good for protecting the surface of conductors.
Features:
1. forged with high strength Aluminum alloy;
2. Light in weight;
3. no damaging on wire.
Shipment
1. The wire grips will be shipped in plywood case by air or by ship.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The wire grips will be packed in plywood case.
2. It also can be packed in wood case or steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
