Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SKL
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Rated Load(KN): |
7-80 |
Weight(kg): |
1.0-18 |
Product Name: |
Aluminum Alloy Wire Grip |
Application: |
Sag Adjusting And Tensioning |
Material: |
Aluminum Alloy |
Structure: |
Parallel Jaw |
Rated Load(KN): |
7-80 |
Weight(kg): |
1.0-18 |
Product Name: |
Aluminum Alloy Wire Grip |
Application: |
Sag Adjusting And Tensioning |
Material: |
Aluminum Alloy |
Structure: |
Parallel Jaw |

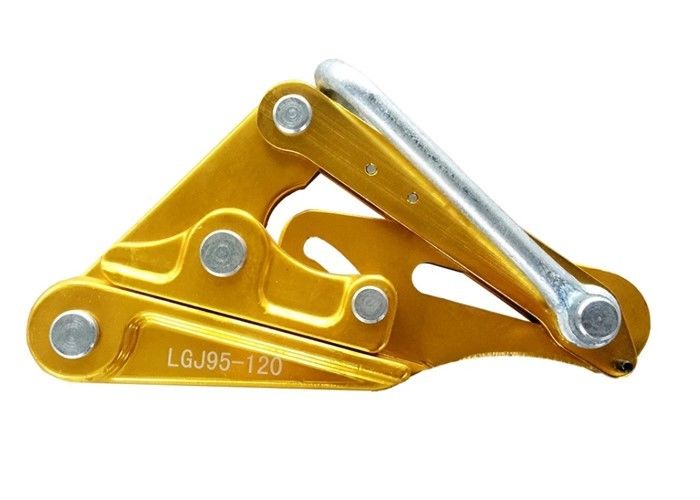

Aluminum Alloy Wire Grip For ACSR Overhead Line Construction
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
|
0101
|
SKL-7
|
7
|
25~70
|
14
|
1.0
|
|
0102
|
SKL-15
|
15
|
95~120
|
18
|
1.4
|
|
0103
|
SKL-25
|
25
|
150~240
|
24
|
3.0
|
|
0104
|
SKL-40
|
40
|
300~400
|
32
|
4.0
|
|
0105
|
SKL-50
|
50
|
500~630
|
36
|
6.6
|
|
0106
|
SKL-40G
|
40
|
400
|
32
|
4.3
|
|
0107
|
SKL-50G
|
50
|
500
|
34
|
7.0
|
|
0108
|
SKL-50GA
|
50
|
630
|
36
|
7.3
|
|
0109
|
SKL-60G
|
60
|
720
|
38
|
9.2
|
|
0111
|
SKL-70G
|
70
|
900
|
42
|
14.0
|
|
0112
|
SKL-80G
|
80
|
1000
|
45
|
18.0
|
|
0113
|
SKL-80GA
|
80
|
1200
|
48
|
18.0
|
Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.
Specification:
1. Product has safety latch with "G" symbol in the "Model No.";
2. Product has safety latch can achieve 3 times of rated load tensile testing without wire damage. It is most suitable for
the line construction by transmission and transformation facilities company;
3. Other specification of conductor clamp can customized according to customers' requirements.
Product Process
Packing Details : Usually, the products should be bulk pack into wooden board carton.
Delivery Details : We always making stock of regular items in order to satisfy market demand so the delivery time is very
quick.
FAQ
1.Can your product change the color?
Yes, we can change the color of products as your required.
2.What's the information should I provide when inquiry?
A. The time of delivery
B. The maximum lifting weight
C. The maximum lift height
3. Whether your prices are reasonable?
It is the fact that each company has its profit.we pay more attention on quality to keep our price value for quality!
4.How about your quality control before shipment?
All of our products will be strictly checked and tested by the QC department before packing.So we guarantee the quality of our products are excellent. We can offer our serial NO., then you can know the detailed products.
