Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: S-3000
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Rated Load(KN): |
30 |
Weight(kg): |
2.5 |
Cable: |
16-32mm |
Material: |
Alloy Steel |
Warranty: |
1 Year |
Name: |
3 Ton Wire Grip Come Along Cable Pulling Clamp |
Rated Load(KN): |
30 |
Weight(kg): |
2.5 |
Cable: |
16-32mm |
Material: |
Alloy Steel |
Warranty: |
1 Year |
Name: |
3 Ton Wire Grip Come Along Cable Pulling Clamp |

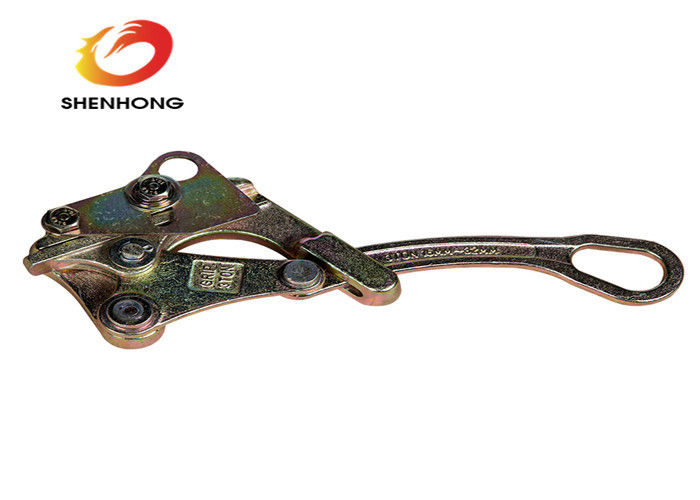

Overhead line Tools 3 Ton Wire Grip Come Along Cable Pulling Clamp
Application
It is used of high-quality alloy steel forging forming, jaws are made by a special heat treatment.The jaws are partially equipped with a safety device to prevent jumpers.It is used for steel wire, ACSR or insulated wire.It is universal.
Note:
1. S-1000C apply to steel rope and steel stranded wire;
2. S-2000CL apply to copper wire, ACSR or insulated wire;
3. S-3000CL apply to copper wire, ACSR or insulated wire.
Technical Data
| Model | Rated load(KN) | Applicable Range(mm) | Weight(kg) |
| S-1000C | 10 | 2.5-16 | 0.8 |
| S-2000CL | 20 | 4-22 | 1.3 |
| S-3000CL | 30 | 16-32 | 2.5 |
