Product Details
Place of Origin: Jiangsu,China(mainland)
Brand Name: Shenhong
Certification: ISO
Model Number: JJM1C
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US $700-1,400 / Set
Packaging Details: standard export wooden case
Delivery Time: 7 work days after the deposit
Supply Ability: 300 Set/Sets per Month
Power Source: |
Diesel Engine |
Application: |
Power Construction |
Pull Force(KN): |
6-8 |
Speed(m/min): |
6-18 |
Weight(kg): |
60 |
Warranty: |
1 Year |
Dimension(mm): |
800*600*400 |
Power Source: |
Diesel Engine |
Application: |
Power Construction |
Pull Force(KN): |
6-8 |
Speed(m/min): |
6-18 |
Weight(kg): |
60 |
Warranty: |
1 Year |
Dimension(mm): |
800*600*400 |

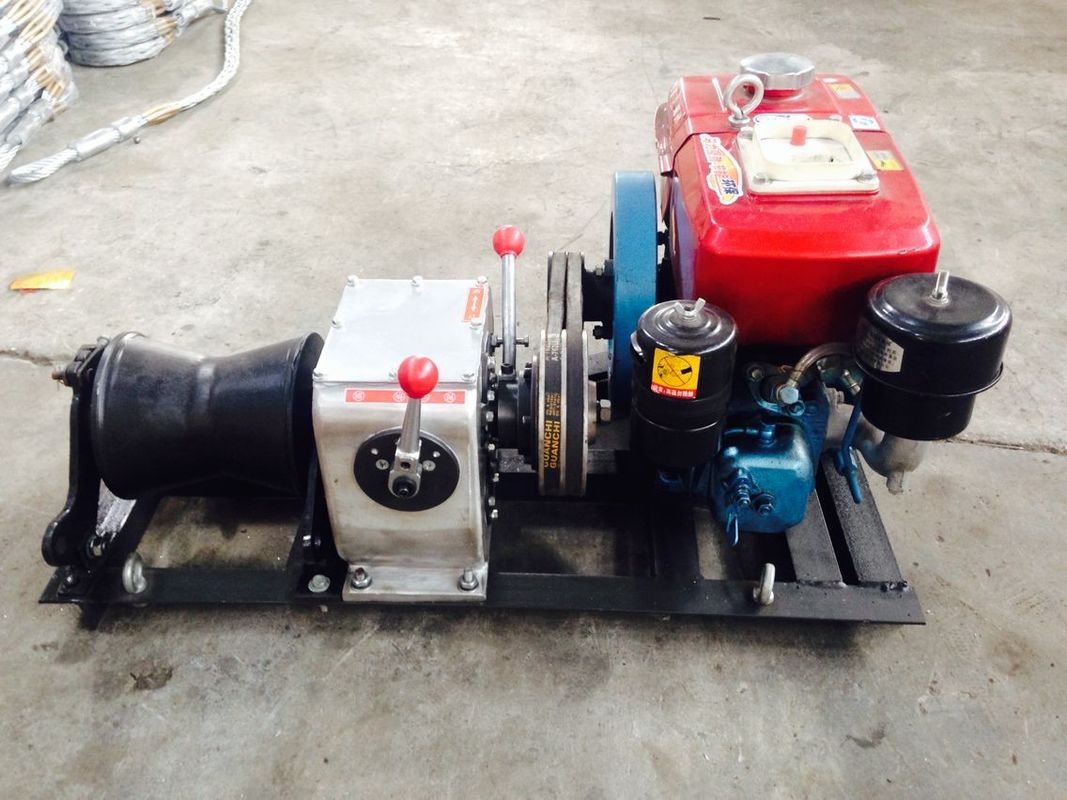

1 Ton Wire Rope Cable Pulling Winch Portable Diesel Hoist Winch
Application
1. It is used for tower erection
2. It is used for pole setting
3. Stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Structure
1. roller wheel
2. transmission
3. diesel or gasoline engine
4. the base frame composition
5. Motor cutter grinding works: winch is used to pull the slot groove rope connected directly to gasoline or diesel engine, electric motor as the driving force, after shifting box of gear to achieve the required speed, the machine is located on steel, ro. bust and easy to move.
Diesel Engine
Features
Small power ydiesel engine
low vibration,low noise
Easy to operate and high safty
Precise Machining Technique
Long Life of the Machine
Delicate and Beautiful Appearance Design
Broader Applicable Scope
Good quality and less malfunction
Specifications
Fuel:diesel
Stroke:4 stroke
Cylinder: Single Cylinder
Cold Style: Water-cooled
Start: Kick Start
Starting System: Recoil/Electric Key start
Transmission and Brake System
1. Belt driven transmission
2. Automatic clamp brake and clutch brake transmission interlock two brakes are braking action in positive and negative directions.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1 | Diesel/engineYamaha engine 4 HP | (Slow) | 10.0 | 0.8 | 50 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| Electric motor | (Slow) | 10.0 | 0.8 | 55 | |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! |
