Product Details
Place of Origin: Jiangsu,China(mainland)
Brand Name: shenhong
Certification: BV,ISO
Model Number: JJM3C
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood case
Delivery Time: ten days after the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Application: |
Line Construction |
Capacity: |
30KN |
Material: |
Steel |
Weight: |
150kg |
Dimension: |
1000*680*550mm |
Rated Power: |
4HP |
Package: |
Plywood Case |
Warranty: |
One Year |
Application: |
Line Construction |
Capacity: |
30KN |
Material: |
Steel |
Weight: |
150kg |
Dimension: |
1000*680*550mm |
Rated Power: |
4HP |
Package: |
Plywood Case |
Warranty: |
One Year |

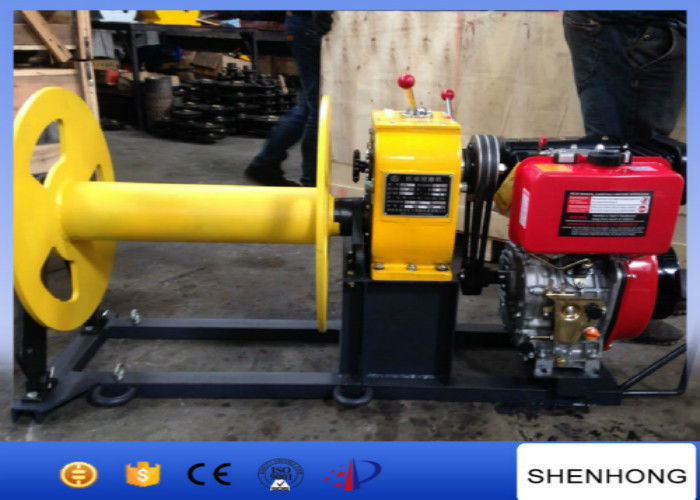

188 F Diesel Cable Winch Air-Cooled Wire Rope Hoist Cable Pulling Winch
Application
It is used for tower erection,pole setting,stringing wire in electrical power line construction.The engine of this product is 188F Air-cooled diesel enging.It doesn't need water, is just cooled by air.
Diesel Engine 188F Air-Cooled
1. Type:Single-cylinder, vertical, air-cooled, four-stroke diesel engine
2. Bore X Stroke (mm):88x75
3. Displacement (ml):456
4. Engine speed (rpm):3000/3600
5. Compression ratio:19: 1
6. Rated power (kW):7 / 3000,8 / 3600
7. Rotation direction (face flywheel view):Clockwise
8. Fuel (recommended):No. 0 or No. -10 diesel
9. Fuel tank capacity (L):5.5
10. Fuel consumption (g / kW.h):3000: 273,3600: 279
11. Oil Capacity (L):1.65
12. Starting method:electric start
13. Dimensions (length X width X height) (mm):500x475x555
14. Weight (kg):54
Features
1.small volumn
2.light weight
3.flexible and easy to operate
Tenchnical data of 188F Air-cooled diesel engine belt driven wire rope hoist cable pulling winch
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM3C | diesel engine | (Slow) | 5 | 3 | 150 |
| (Fast) | 12 | 1.8 | |||
| Reverse | 4.5 | No Lifting! |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
