Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SHDN660
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Material: |
Nylon |
No. Of Sheave: |
1 |
Application: |
Stringing Conductor |
Wheel Diameter: |
660mm |
Type: |
660mm Diameter 100mm Width Single Conductor Rope Pulley |
Wheel Width: |
100mm |
Material: |
Nylon |
No. Of Sheave: |
1 |
Application: |
Stringing Conductor |
Wheel Diameter: |
660mm |
Type: |
660mm Diameter 100mm Width Single Conductor Rope Pulley |
Wheel Width: |
100mm |

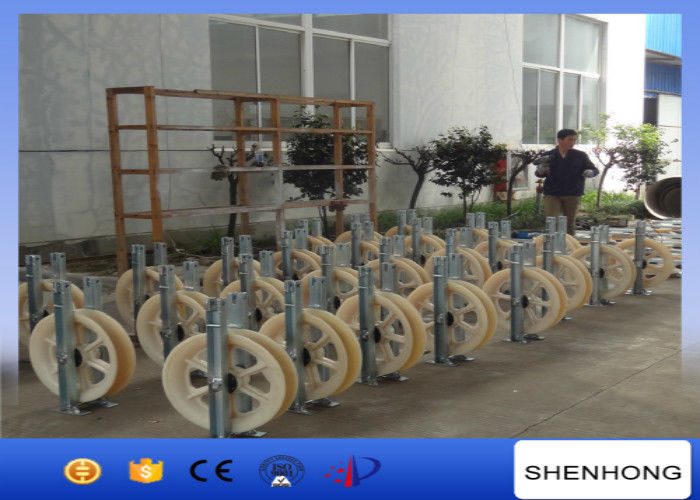

660MM Diameter Single Conductor Wire Rope Pulley Galvanized Steel Frame
Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Galvanized Steel Frame
4. Diameter: 916mm
5. Wheel Width: 110mm
6. Single Wheels
7. Nylon Wheels
8. With Rubber Covered or Without
9. Rated Load: 50kN
10. Conductor Size: under 800mm2
Specification:
Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
