Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SHDN508
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Material: |
Nylon |
No. Of Sheave: |
1/3/5/7 |
Application: |
Stringing Conductor |
Wheel Diameter: |
508mm |
Type: |
508MM Stringing Blocks For Single Conductor With 30KN Load Capacity |
Wheel Width: |
75mm |
Material: |
Nylon |
No. Of Sheave: |
1/3/5/7 |
Application: |
Stringing Conductor |
Wheel Diameter: |
508mm |
Type: |
508MM Stringing Blocks For Single Conductor With 30KN Load Capacity |
Wheel Width: |
75mm |

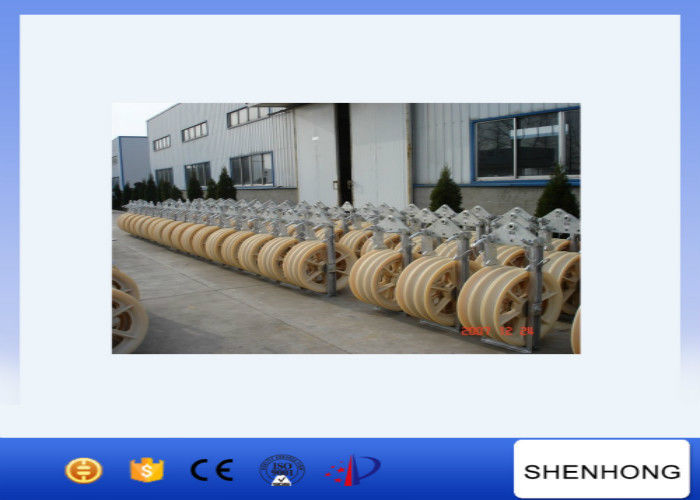

508MM Nylon Wheel Wire Rope Pulley Block Transmission Line Stringing Tools
508MM stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing.
| Item No. | Model | No. of Sheaves | Rated Load (KN) |
Diameter of Groove / Conductor Size |
Weight (kg) | Material | Outer Dia. / width Of Sheave |
| 10101 | SHD-508x75 | 1 | 20 | Φ408mm / ≤ACSR400 mm² | 22.5 | Aluminum | Φ508mm / 75mm |
| 10102 | SHS-508x75 | 3 | 40 | 86 | Central sheave steel | ||
| 10103 | SHW-508x75 | 5 | 60 | 108 | |||
| 10104 | SHDN-508x75 | 1 | 20 | 18.5 | Nylon | ||
| 10105 | SHSN-508x75 | 3 | 40 | 51.5 | Central sheave Nylon | ||
| 10106 | SHWN-508x75 | 5 | 60 | 91.5 | |||
| 10107 | SHSQN-508x75 | 3 | 40 | 60 | Nylon | ||
| 10108 | SHWQN-508x75 | 5 | 60 | 75 |
All the sheaves are mounted on ball bearings. The central sheave is specially designed and manufactured for passing the pilot wire rope. The frame is made of galvanized steel.
Shipment
1. The blocks will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The blocks will be loaded in container.
2. It also can be packed in plywood case or steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
Why choose us:
1. High quality and competitive price
2. Leading and biggest manufacture for stringing equipment and tools in China.
3. Customer specially ordered products are available, such as helicopter stringing blocks.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service
