Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHON
Certification: ISO
Model Number: J400B
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: export package
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month
Name: |
Conductor Joint Protector |
Conductor Size (mm²): |
400mm2 |
Application: |
Protecting Wire Pressure Tube On ACSR Releasing |
Usage: |
Overhead Line Transmission |
Warranty: |
1 Year |
Material: |
Steel |
Name: |
Conductor Joint Protector |
Conductor Size (mm²): |
400mm2 |
Application: |
Protecting Wire Pressure Tube On ACSR Releasing |
Usage: |
Overhead Line Transmission |
Warranty: |
1 Year |
Material: |
Steel |

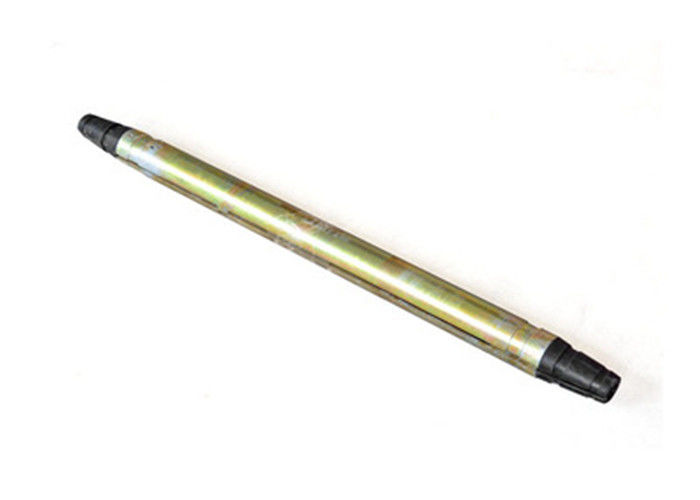

Splice Protection Sleeve Splicing Sleeves for ACSR Conductor
Introduction
Apply to protecting wire pressure tube on ACSR releasing and make it avoid torsion when pass
through pulleys. If the size of crimp tube is different from the standard, the dimension of splicing sleeve should be indicated in the contract.
Notes
Please writing the dimension of splice in contact if the splicing sleeve differ from standard.
Technical Data
| Item number | Model | Main size(MM) |
Application conductor(MAX) |
|||
| D | L | d | L1 | |||
| 17201 | J240B | Φ45 | 850 | Φ38 | 530 | LGJ240/55 |
| 17202 | J300B | Φ51 | 940 | Φ43 | 600 | LGJ300/50 |
| 17203 | J400B | Φ57 | 995 | Φ47 | 665 | LGJ400/50 |
| 17204 | J500B | Φ68 | 1080 | Φ56 | 740 | LGJ500/65 |
| 17205 | J630B | Φ83 | 1180 | Φ63 | 800 | LGJ630/55 |
| 17206 | J720B | Φ83 | 1196 | Φ63 | 816 | LGJ720/55 |
| 17207 | J900B | Φ89 | 1180 | Φ73 | 800 | LGJ900/75 |
| 17208 | J1000B | Φ95 | 1400 | Φ75 | 1020 | LGJ1000/80 |
| 17209 | JBZ1250 | Φ114 | 2280 | Φ86 | 1190 | JL1/G2A-1250 |
