Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: BV,ISO
Model Number: QHN
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: cartoon
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Application: |
Construction |
Used: |
Lifting |
Rated Load: |
10-100KN |
Applicable Diameter Of Rope: |
7.7-9.3mm |
Weight: |
1.8-13.2KG |
Function: |
Power Line Construction |
Application: |
Construction |
Used: |
Lifting |
Rated Load: |
10-100KN |
Applicable Diameter Of Rope: |
7.7-9.3mm |
Weight: |
1.8-13.2KG |
Function: |
Power Line Construction |

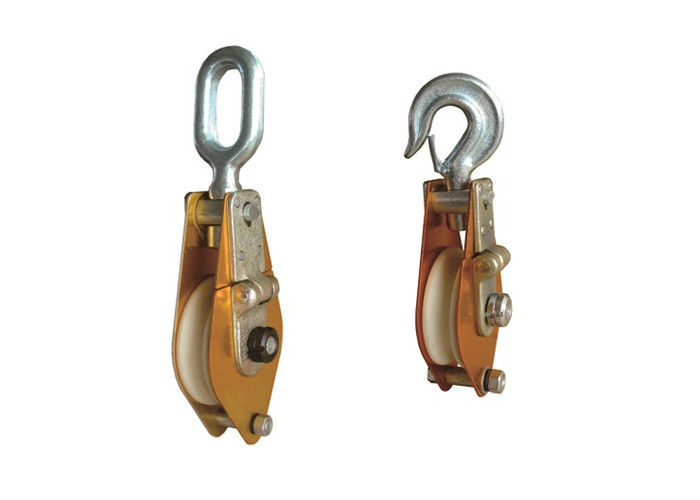

Aluminum Alloy Plated With Nylon Sheave Hoist Pulley Block and Tackle
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products
Technical data
| Item number | Model | Number of sheaves | Rated load (kN) |
Roller Diaxwidth (MM) |
MAX. Rope Diamete (mm) |
Weight (kg) |
| 11101 | QHN1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11102 | QHN1x2 | 2 | Φ80×27 | Φ6 | 2 | |
| 11103 | QHN1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11111 | QHN2x1 | 1 | 20 | Φ120×35 | Φ10 | 2 |
| 11112 | QHN2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11113 | QHN2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11121 | QHN3x1 | 1 | 30 | Φ150×39 | Φ11 | 3 |
| 11122 | QHN3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11123 | QHN3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11131 | QHN5x1 | 1 | 50 | Φ166×40 | Φ13 | 5 |
| 11132 | QHN5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11133 | QHN5x3 | 3 | Φ120×35 | Φ10 | 5 | |
| 11141 | QHN8x1 | 1 | 80 | Φ205×49 | Φ18 | 7 |
| 11142 | QHN8x2 | 2 | Φ166×40 | Φ13 | 8 | |
| 11143 | QHN8x3 | 3 | Φ150×39 | Φ11 | 8 | |
| 11151 | QHN10x1 | 1 | 100 | Φ246×60 | Φ20 | 11 |
| 11152 | QHN10x2 | 2 | Φ166×40 | Φ13 | 10 | |
| 11153 | QHN10x3 | 3 | Φ150×39 | Φ11 | 12 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
