Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: 660
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: export package
Delivery Time: 7-30 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs per month
Material: |
Nylon |
Surface: |
Garvanized |
Application: |
Line Stringing |
Wheel Diameter: |
660mm |
Wheel Width: |
100mm |
Weight: |
30-190kg |
Material: |
Nylon |
Surface: |
Garvanized |
Application: |
Line Stringing |
Wheel Diameter: |
660mm |
Wheel Width: |
100mm |
Weight: |
30-190kg |

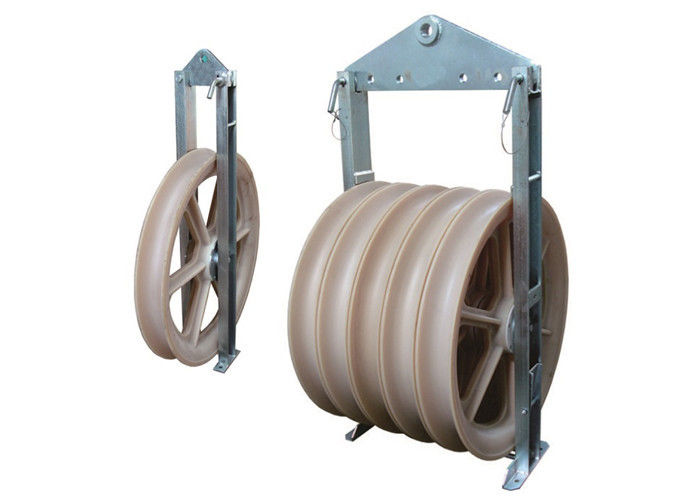

660mm large diameter bundled conductor stringing pulley block with nylon wheels
Usage:
Protect the cable and conductor from fricting when they are laying.They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| G1418 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| G1419 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| G1420 | SHW660 | 5 | 60 | 150 | |
| G1421 | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| G1422 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| G1423 | SHWLN660 | 5 | 60 | 120 | |
| G1424 | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| G1425 | SHWQN660 | 5 | 60 | 110 | |
| G1427 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
Shipment
1. The blocks will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The blocks will be loaded in container.
2. It also can be packed in plywood case or steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
Why choose us:
1. High quality and competitive price
2. Leading and biggest manufacture for stringing equipment and tools in China.
3. We have 25 years of production experience, and more than 1000 customers in the country and abroad market. The stringing blocks have been sold to more than 40 countries.
4. Customer specially ordered products are available, such as helicopter stringing blocks.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service
