Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SHD150
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Max Cable Diameter(mm): |
φ150 |
Rated Load(kN): |
5 |
Dimension(mm): |
φ140x160 |
Weight(kg): |
3.5 |
Usage: |
Stringing |
Item: |
Aerial Cable Stringing Roller |
Max Cable Diameter(mm): |
φ150 |
Rated Load(kN): |
5 |
Dimension(mm): |
φ140x160 |
Weight(kg): |
3.5 |
Usage: |
Stringing |
Item: |
Aerial Cable Stringing Roller |

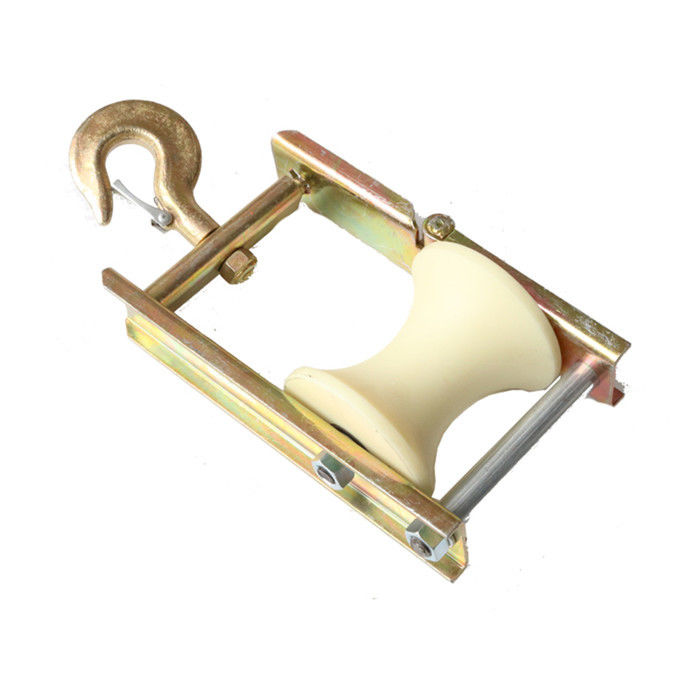

Aerial Cable Stringing Roller with Nylon Wheel With Hook Overhead Fiber Optic Cable Sheave
Cable guide pulley widely used for the cable laying contractor, utility and electricity supply industry – this includes straight cable rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches .
Usage:to aerial electric power and communication cable construction .
Characteristic:
1. One side can be opened
2. Nylon Roller
3.10288 suitable for ABC cable(bunch)
4.21338,21339 and 21340 suitable for aerial electric power and communication cable construction.
| Item number | Rated load (kN) | Max Applicable Cable | Shcave Size | Weight (kg) |
| 10228 | 5 | φ 100 | φ120x130mm | 2.7 |
| 21338 | 5 | φ 80 | φ160x90mm | 3.5 |
| 21339 | 5 | φ 150 | φ140x160mm | 3.5 |
| 21340 | 5 | φ 200 | φ160x230mm | 12.5 |
