Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7-10 days after payment
Supply Ability: 100pcs per month
Sheave: |
Nylon Or Aluminum |
Wheel: |
1 |
Application: |
Stringing |
Name: |
Single Sheave Stringing Block |
Warranty: |
1 Year |
Outside Diameter ×width (mm): |
120×58 |
Sheave: |
Nylon Or Aluminum |
Wheel: |
1 |
Application: |
Stringing |
Name: |
Single Sheave Stringing Block |
Warranty: |
1 Year |
Outside Diameter ×width (mm): |
120×58 |

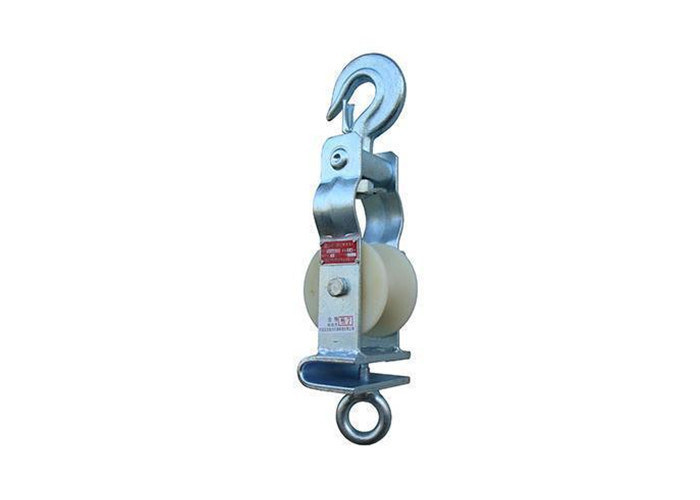

Universal Hook Style Single Sheave Pulley Block Model SHCN-120×58 with Nylon Sheave
Our single sheave stringing block is divided into hook, clevis, and other types. The specified type must be clearly indicated in the order form. We can customize the product with special specifications. In the following table, the data of model refers to the outer diameter of sheave × width of sheave (mm).
Technical Parameters
| Item number | Model | Outside diameter ×width (mm) | Rated load (kN) | Weight (kg) | Remark |
| 10261 | SHC-80×50 | Φ80×50 | 5 | 1.9 | Aluminum sheave |
| 10262 | SHC-120×30 | Φ120×30 | 5 | 2.1 | |
| 10263 | SHC-160×40 | Φ160×40 | 10 | 2.5 | |
| 10264 | SHC-120×58 | Φ120×58 | 20 | 3.5 | |
| 10271 | SHCN-80×50 | Φ80×50 | 5 | 1.4 | Nylon sheave |
| 10272 | SHCN-120×30 | Φ120×30 | 5 | 1.6 | |
| 10273 | SHCN-160×40 | Φ160×40 | 10 | 2 | |
| 10274 | SHCN-120×58 | Φ120×58 | 20 | 2.5 |
