Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: get latest price
Packaging Details: Plastic sheet/steel box
Delivery Time: 15-20 days after payment
Payment Terms: L/C, T/T, Western Union
Type: |
Three Nylon Wheels Electric Cable Pulley Roller |
Item: |
Stringing Pulley Block |
Wheel: |
Nylon |
Wheel Number: |
3 |
Conductor Size (mm2): |
500 |
Weight (kg): |
85 |
Type: |
Three Nylon Wheels Electric Cable Pulley Roller |
Item: |
Stringing Pulley Block |
Wheel: |
Nylon |
Wheel Number: |
3 |
Conductor Size (mm2): |
500 |
Weight (kg): |
85 |

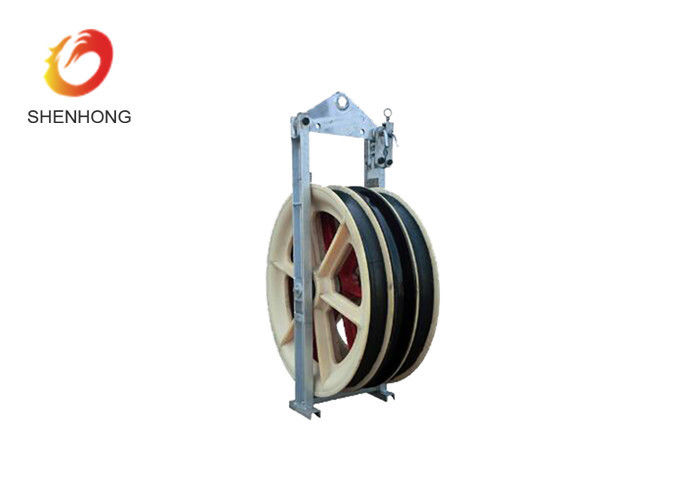

Galvanized steel frame three nylon wheels electric cable pulley roller cable stringing blocks
Data Sheet
| model | Number of rounds | Rated load(KN) | Diameter of groove bottom(MM) | Applicable wire(mm²) | weight(kg) |
| DNH3-408×80 | 3 | 40 | φ300 | ≤LGJ-400 | 36 |
| DNH3-508×75 | 3 | 40 | φ408 | ≤LGJ-400 | 43 |
| DNH3-660×90 | 3 | 40 | φ560 | ≤LGJ-400 |
75 |
| DNH3-660×100 | 3 | 40 | φ560 | ≤LGJ-400 |
77 |
| DNH3-660×110 | 3 | 40 | φ560 | ≤LGJ-400 |
83 |
| DNH3-780×90 | 3 | 40 | φ660 | ≤LGJ-400 |
85 |
| DNH3-822×110 | 3 | 50 | φ710 | ≤LGJ-630 |
145 |
| DNH3-916×110 | 3 | 80 | φ800 | ≤LGJ-720 |
127 |
| DNH3-920×125 | 3 | 90 | φ800 | ≤LGJ-900 |
140 |
| DNH3-1040×110 | 3 | 150 | φ900 |
≤LGJ-1000 |
185 |
| DNH3-1160×150 | 3 | 120 | φ1000 |
≤LGJ-1250 |
235 |
