Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Material: |
Nylon |
No. Of Sheave: |
1,3,5,7,9 |
Application: |
Stringing Conductor |
Wheel Diameter: |
916mm |
Wheel Width: |
110mm |
Type: |
Grounding Roller Stringing Block |
Material: |
Nylon |
No. Of Sheave: |
1,3,5,7,9 |
Application: |
Stringing Conductor |
Wheel Diameter: |
916mm |
Wheel Width: |
110mm |
Type: |
Grounding Roller Stringing Block |

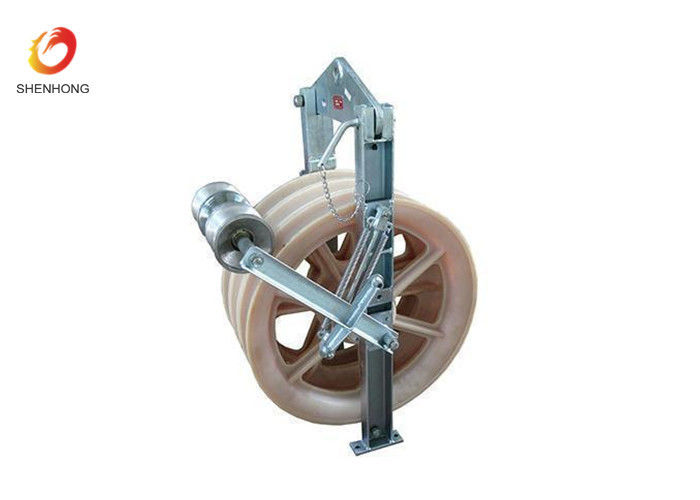

Grounding Roller Stringing Block Pulley Block for overhead line tranmission
Our grounding roller stringing block serves to release the induced current of the conducting wire into earth when applied to conductor stringing construction. Our users can see Large Diameter Stringing Block for other parameters about the block. Also, customers can order other large diameter stringing blocks with grounding roller. Just adding the postfix 'D' to the model of block is enough.
Technical Parameters
| Item number | Model | Outside diameter of sheave (mm) | Sheave number |
| 10301 | SHD508D | Φ508×75 | 1 |
| 10302 | SHS508D | 3 | |
| 10303 | SHW508D | 5 | |
| 10311 | SHD660D | Φ660×100 | 1 |
| 10312 | SHS660D | 3 | |
| 10313 | SHW660D | 5 | |
| 10136-1 | SHDN822D | Φ822×110 | 1 |
| 10316-3 | SHSQN822D | 3 | |
| 10316-5 | SHWQN822D | 5 | |
| 10316 | SHDN916D | Φ916×110 | 1 |
| 10317 | SHSQN916D | 3 | |
| 10318 | SHWQN916D | 5 |
