Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: 660
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Material: |
Nylon |
No. Of Sheave: |
1,3,5,7,9 |
Application: |
Overhead Power Line Transmission |
Wheel Diameter: |
660mm |
Wheel Width: |
100mm |
Type: |
Conductor Stringing Block |
Material: |
Nylon |
No. Of Sheave: |
1,3,5,7,9 |
Application: |
Overhead Power Line Transmission |
Wheel Diameter: |
660mm |
Wheel Width: |
100mm |
Type: |
Conductor Stringing Block |

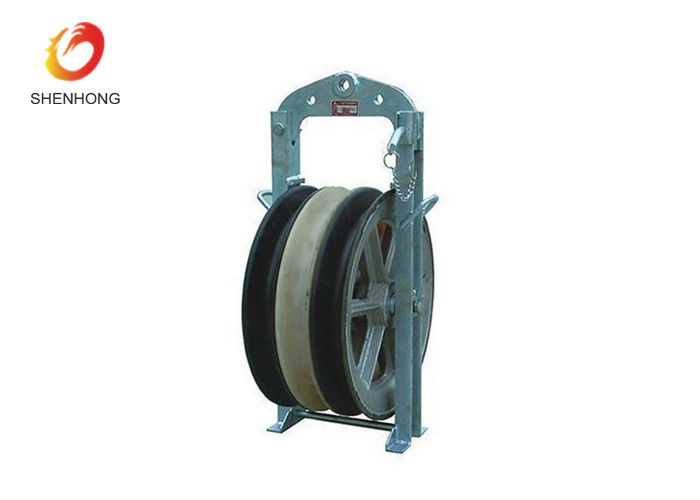

660mm Large Diameter Rope Pulley Conductor Stringing Blocks Overhead Power Line Transmission
The pulleys are suitable for stringing conductor max up to ACSR500.
The pulley wheels are made of aluminium alloy / MC nylon mounted on ball bearings; the groove is lined by a neoprene ring or by wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanized steel. The pulleys can be supplied with three types of connections: fixed(B), swivel-type(C) or with a hook supplied with safety lock(D). Grounding device or complete conductive sheaves can be supplied on demand.
Our 660mm Large Diameter Stringing Block is fitted with the maximum suitable conductor LGJ500. That is to say, the aluminum of this conducting wire possesses the cross section of at most 500 square millimeters.
In addition, the block dimension (outside diameter*root diameter*sheave width) is Φ660× Φ560× 100 (mm). The middle steel sheave of both 10122 and 10123 types has a width of 90mm. We can also supply the middle nylon sheave with the width of 90mm for option.
Specifications
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
Block dimension Φ660×Φ560×110(mm) can be customized
Shipment
1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.
Why choose us:
1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
