Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: 508
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Material: |
Nylon |
No. Of Sheave: |
1,3,5,7,9 |
Application: |
Stringing Conductor |
Wheel Diameter: |
508mm |
Wheel Width: |
75mm |
Type: |
Conductor Stringing Block |
Material: |
Nylon |
No. Of Sheave: |
1,3,5,7,9 |
Application: |
Stringing Conductor |
Wheel Diameter: |
508mm |
Wheel Width: |
75mm |
Type: |
Conductor Stringing Block |

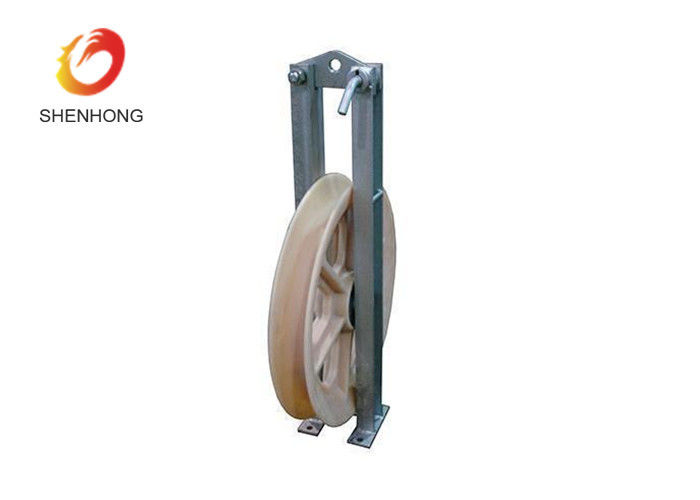

508mm Large Diameter Stringing Block Comes With The Maximum Suitable Conductor
This 508mm Large Diameter Stringing Block comes with the maximum suitable conductor LGJ400. In other words, our product is adaptable to the conducting wire which has the aluminum's nominal cross section of up to 400 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ508×Φ408×75 (mm).
Technical Parameters
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features of Sheave |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber coated aluminum sheave |
| 10102 | SHS508 | 3 | 40 | 61 | Middle: cast steel sheave Conductor: Rubber coated aluminum sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 | Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107 | SHSQN508 | 3 | 40 | 43 | MC nylon sheave |
| 10108 | SHWQN508 | 5 | 60 | 70 |
Block dimension Φ508×Φ408×100(mm) can be customized
Shipment
1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.
Why choose us:
1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
