Product Details
Place of Origin: Jiangsu,China
Brand Name: Shenhong
Certification: ISO
Model Number: YQK-240
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US $30-200 / Piece
Packaging Details: Plastic case
Delivery Time: 7 work days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Type: |
Hydraulic Crimping Tools |
Weight(kg): |
6.3 |
Warranty: |
1 Year |
Output(KN): |
240 |
Working Stroke(mm): |
22 |
Crimping Range(mm2): |
16-240 |
Type: |
Hydraulic Crimping Tools |
Weight(kg): |
6.3 |
Warranty: |
1 Year |
Output(KN): |
240 |
Working Stroke(mm): |
22 |
Crimping Range(mm2): |
16-240 |

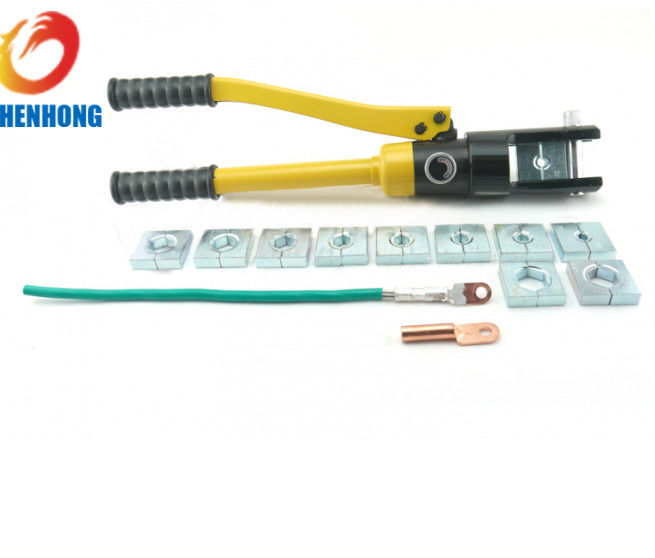

YQK-240 Hydraulic Cable Lug Crimping Tools Crimping Plier Crimping Up to 240mm2
Specifications
1.Compression mould can be replaced, quick and safe operation;
2.Compression configuration: 10,16, 25, 35, 50, 70,150,185,240,300mm2
3.Press tools is suitable for DIN.AWG.JIS.
4.There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
5.It can be operated by one person ,it saves time and labor.
6.Pump is connected to the tools, it can turn 180 degree when pressed on the head.
Features:
Hydraulic Crimping Tool is a processional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4 mm2 to 1000 mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided by special making..
Description
| YQK-240 | |
| Output(T) | 12 |
| Ram Stroke(mm) | 22 |
| Crimping Range(mm2) | Cu 16-240 |
| Standard Mould(mm2) | 16,25,35,50,70,95,120,150,185,240 |
| Length(mm) | 500 |
| Weight(kg) | 6.3l |
Packing
one pc in one plastic box ,fore plastic box in one paper box.
| Item NO. | Crimping range | Max pressure | Max travel | Mould | Crimping type |
| YQK-70 | 4-70 mm2 | 6T | 10mm | 4, 6, 8, 10, 16, 25, 35, 50, 70 mm2 | Besiege pressure |
| YQK-120 | 10-120 mm2 | 8T | 12mm | 10. 16, 25, 35, 50, 70, 95, 120 mm2 | Besiege pressure |
| YQK-120C | 10-120 mm2 | 8T | 14mm | 10. 16, 25, 35, 50, 70, 95, 120 mm2 | Besiege pressure |
| YQK-240 | 16-240 mm2 | 10T | 18mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 | Besiege pressure |
| YQK-300 | 16-300 mm2 | 10T | 18mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2 | Besiege pressure |
| YQ-400C | 16-400 mm2 | 12T | 22mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2 | Besiege pressure |
