Product Details
Place of Origin: Jiangsu,China(mainland)
Brand Name: Shenhong
Certification: ISO
Model Number: JJM5C
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US $1100-1,800 / Set
Packaging Details: standard export wooden case
Delivery Time: 7 work days after the deposit
Supply Ability: 300 Set/Sets per Month
Power Source: |
Water Cooled Diesel Engine |
Application: |
Power Construction |
Pull Force(KN): |
50 |
Weight(kg): |
280 |
Warranty: |
1 Year |
Dimension(mm): |
1330*800*600 |
Power Source: |
Water Cooled Diesel Engine |
Application: |
Power Construction |
Pull Force(KN): |
50 |
Weight(kg): |
280 |
Warranty: |
1 Year |
Dimension(mm): |
1330*800*600 |

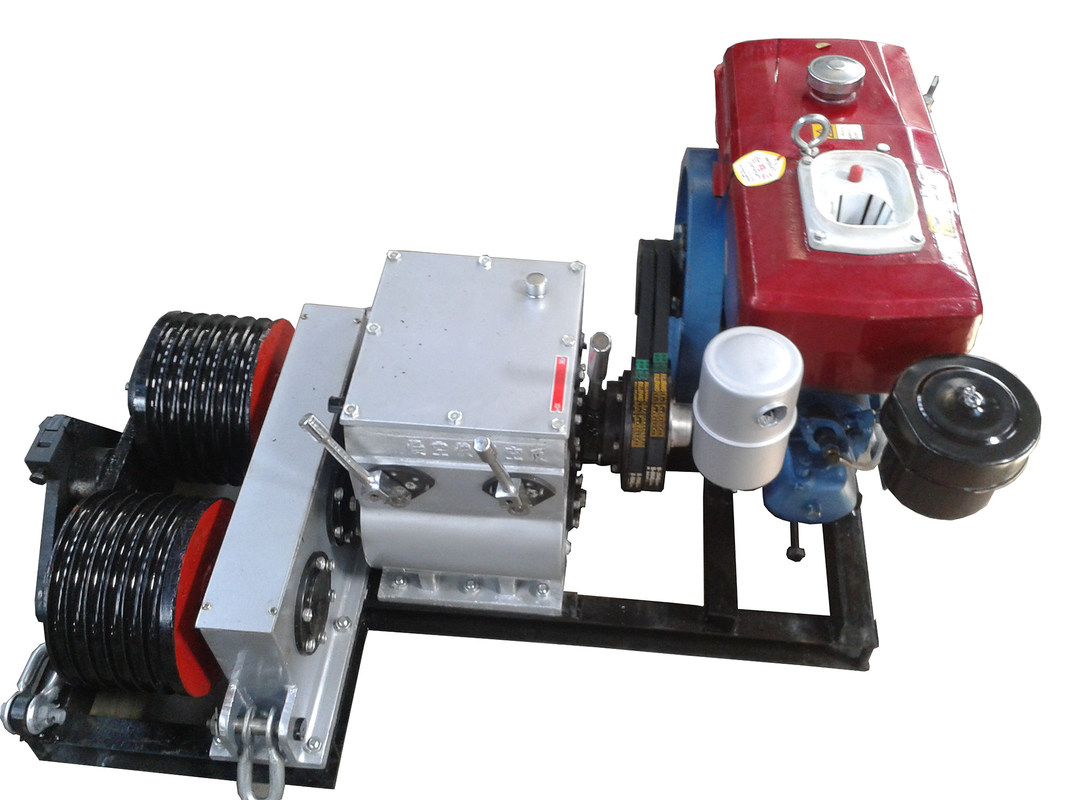

Double Capstan 5T Cable Pulling Winch With Diesel Engine
Application
5 Ton Double Drum Diesel Cable Capstan Winch is a traction hoisting operation carried out in the filed of construction site,
mainly used in electric power ,telecommunicatons line tower,stood inthe receiving ,put on the line,the laying of cable,hauling
or lifting.
Technical Data
| Model/No. | JJM-5SC/10013 | |||||
| Engine | 186F Diesel Engine | |||||
| Power | 6.3KW,3600rpm | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No.Of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow I | Slow II | Fast I | Fast II | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(KG) | 280 | |||||
| Dimension(mm) | 1330×800×600(L×W×H) |
|||||
