Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD10-20
Packaging Details: Carton
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T, Western Union
Type: |
Straight Cable Roller |
Wheel: |
φ140x160mm |
Weight: |
5kg |
Rated Load: |
12KN |
Suitable Cable: |
≤150mm |
Product Name: |
Nylon Straight Cable Pulling Roller Guide Roller |
Type: |
Straight Cable Roller |
Wheel: |
φ140x160mm |
Weight: |
5kg |
Rated Load: |
12KN |
Suitable Cable: |
≤150mm |
Product Name: |
Nylon Straight Cable Pulling Roller Guide Roller |

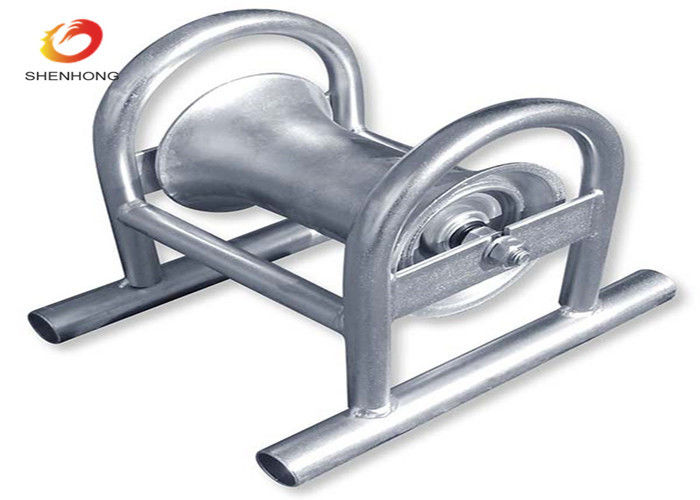

Cable Laying Equipment Straight Cable Pulling Roller Guide Roller With Nylon Wheel
Application
Nylon Straight Cable Pulling Roller Guide Roller is used to release the power cable.It is mainly used to bury the cable and it is used on the ground.The shaft is equipped with high speed bearing and steel tile.It will not damage the cable.
Features
1.Material:MC Nylon or Aluminium Alloy
2.Light Weight
3.High Quality
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1.Take First-Class Quality as Target and First-Class Service
2.As Responsibility,To Succeed by Scientific Management.
3.Customer in Heart,Quality in Hand,Technology in the Lead.
Technical Data
| Product NO. | Type NO. | Rated Load( KN) | Range (mm) | specifications(mm) | weight(kg) |
| 80439 | DHP-60 | 12 | ≤Φ150 | 140*160 | 4.2 |
| 80440 | DHP-60N | 12 | ≤Φ150 | 140*160 | 4 |
| 80441 | DHPG-80 | 15 | ≤Φ150 | 160*165 | 5.1 |
| 80442 | DHPG-80N | 15 | ≤Φ150 | 160*165 | 4.8 |
